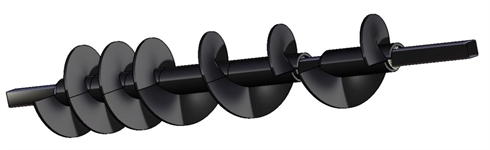

Modular Polymer Archimedes' Screw

Advantages compared to metallic screws
  • Improvement of the material flow
  • Easy maintenance
  • Abrasion resistance
  • Corrosion and chemical resistance
  • Noise reduction
  • No intermediate bearing
  • Fast deliveries

Build different Archimedes' screws by stacking four standard flightings


T type
Termination
M type
Conveying
M type
Feeding
F type
Flange
Variable Pitch 1
 Variable Pitch 2
Constant Pitch 1
 Constant Pitch 2
Constant Pitch 3
 Short Pitch

Standard metallic shafts are the core of the Archimedys screw

They are available in stock.The standard length is 3 m. longer shafts are done by assembly and welding. The hexagonal sections come in widths of 32mm, 22mm, 17 mm and 13mm.

Available types are :

  • Steel c35
  • Stainless steel 304
  • Stainless steel 316 (food)

Any fixation can be provided in order to adapt the screw to your specific needs. We will propose a drawing for approval before processing the parts.

Square shafts are used for custom made large modules



Special Purpose Materials:
    U1 - Industrial
    U2 - Food Contact
    U5 - Food Contact
    U4 - ATEX
    (Explosive Atmosphere)

Select from your Online Catalogue

Standard modules from 50mm to 305mm Diameter

Larges modules from 356mm to 609mm Diameter

Screw Design

Online Archimedes screw calculator here

All the technical data are available in the toolbox in order to help you define a screw. You have access to the material data base, sizes and you can easily calculate power and torque.
